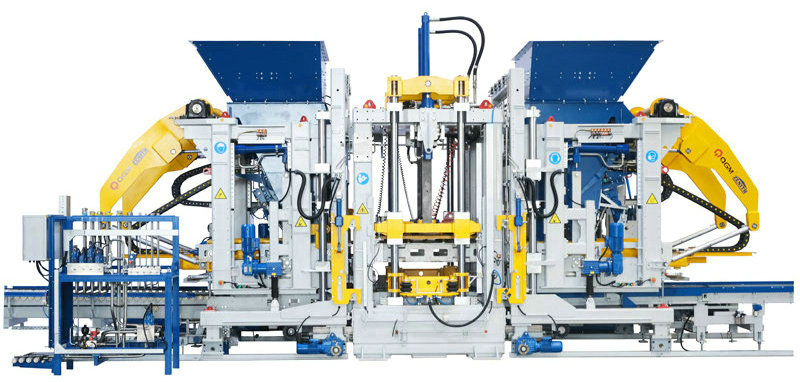

ZN2000C Concrete Block Machine

ZN2000C Concrete Block Machine ndiyo yakazvigadzira modhi. Iyo inoratidzirwa nehupamhi hwehungwaru uye otomatiki, uye inoshandisa yakazara-tekinoroji yekucheka-kumucheto matekinoroji akadai sedhijitari uye ruzivo system, iyo inoshandiswa zvakanyanya mukuvaka maguta matsva nemaguta esiponji.

Features:

Dual vibration tafura, masere servo motors (optional) Pamusoro midziyo

Modular assembly kuitira nyore kugadzirisa Mamwe marudzi akasiyana ezvidhinha anogadzirwa

Kukwanisa kwepamusoro, kubudirira kwepamusoro

Pallet size 1400x1400/1300mm

Kugadzira nzvimbo 1320x1350/1250mm

Product urefu 40-500mm

Nhamba yezvidhinha Zvidhinha zvisina maburi: 18 zvidhinha/ mold (390x190x190mm)

Zvidhinha zvakajairika: 105 zvidhinha / mold (240x115x53mm)

Zvidhinha zvemumugwagwa: 66 zvidhinha/ mold (200x100x60mm)

Equipment size Approx. 10,000

Approx. 4,700

Approx. 3,400

Vibration system Yakanyanya kukwezva simba retafura yekuzunguza: 200/kN

Ukuru hwekusimudzira simba remusoro wekudhinda: 40/kN

Magetsi parameters Total simba (reference): 231/kW

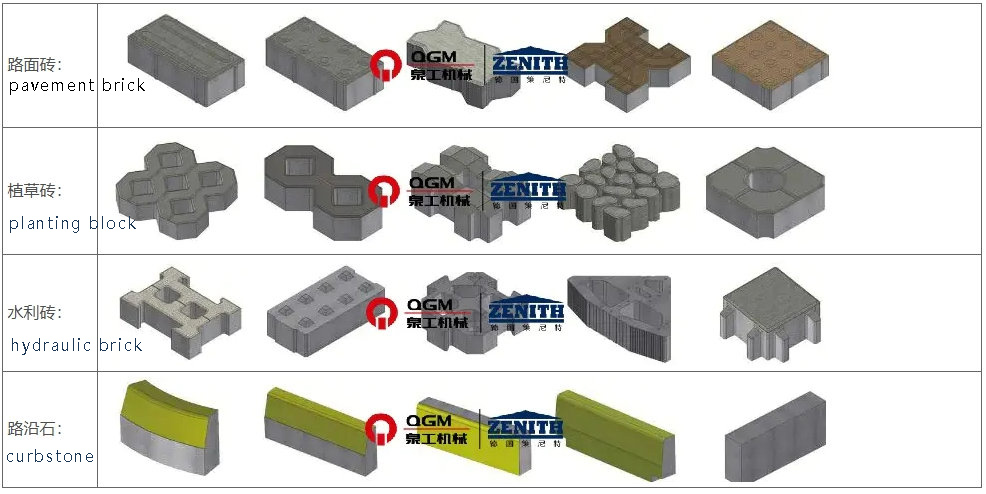

Schematic diagram yezvidhinha samples inogadzirwa nemidziyo

Technical Advantages

1. Yepamusoro-mhando furemu dhizaini yeGerman shanduro

Iyo mainframe furemu inotora iyo yakakwirira-yakasimba welded furemu chimiro chakagadzirwa neZenit's patented tekinoroji, iyo yakashongedzwa neyakagadzirirwa yakakosha chikamu simbi, ine inonzwisisika dhizaini, kunyangwe uye yakanaka welding, uye iyo furemu yese inotarisana nekuchembera vibration kurapwa kuti ive nechokwadi chemhando yepamusoro uye kugadzikana kwepamusoro kwefuremu. Iyo yepamusoro dhizaini dhizaini inoita kuti mainframe iwedzere, uye iyo yedivi mold kuvhura nekuvhara basa, musimboti kudhirowa (bhodhi) basa, polystyrene board implantation basa, nezvimwe zvinogona kuwedzerwa zvino.

2.Automatic nokukurumidza mold shanduko hurongwa

Kana iyo mold ichiendeswa kunzvimbo yekutambira, iyo yekusimudza sisitimu inoona otomatiki mold shanduko pane yekukurumidza mold shanduko mudziyo. Iwo epamusoro uye epasi mold anongovharirwa pneumatically, ayo akachengeteka, anoshanda, ari nyore kushanda uye ari nyore kuchengetedza. Zvinonyanya kusanganisira:

Pneumatic mold clamping mudziyo: Iyo inonyanya kuve ine mold bracket uye pneumatic clamping tsvimbo pamativi ese, ayo anobatsira mukusunga uye kugadzirisa mold uye kunyorovesa kana muchina wekutambira uchiita pre-vibration uye main vibration, kuitira kuti uwane yakanakisa vibration mhedzisiro uye kurebesa hupenyu hwesevhisi yezviumbwa.

Pneumatic indenter yekuvhara mudziyo: iyo indenter inogadziriswa neiyo clamping mudziyo ine airbag, iyo inogona nyore uye nekukurumidza kutsiva iyo indenter, kupfupisa nguva yekutsiva mold uye kuisirwa, uye ive nechokwadi chekumisikidzwa kweiyo yepasi mold furemu uye yekumusoro indenter.

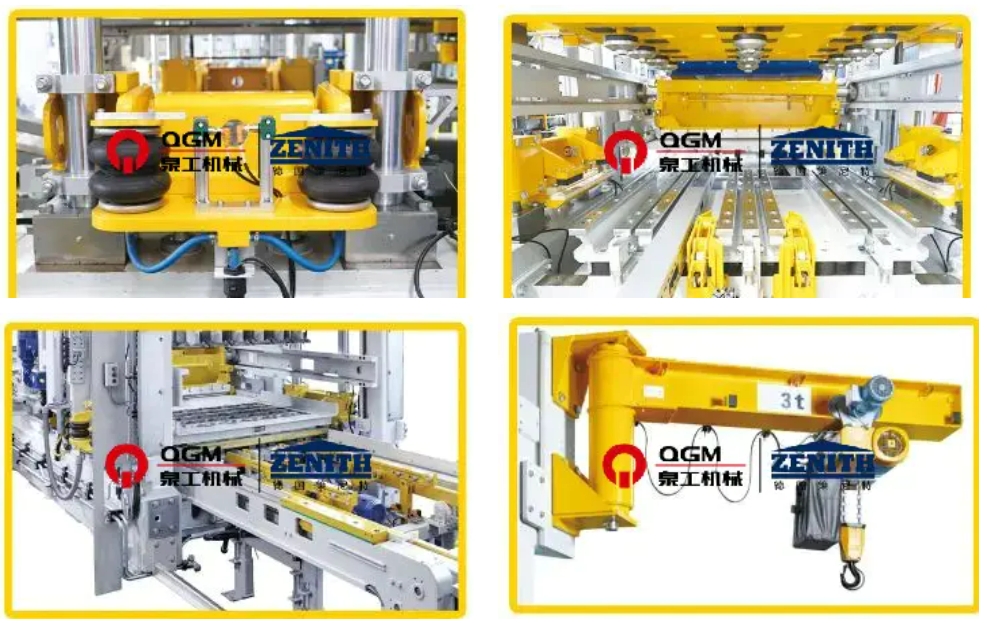

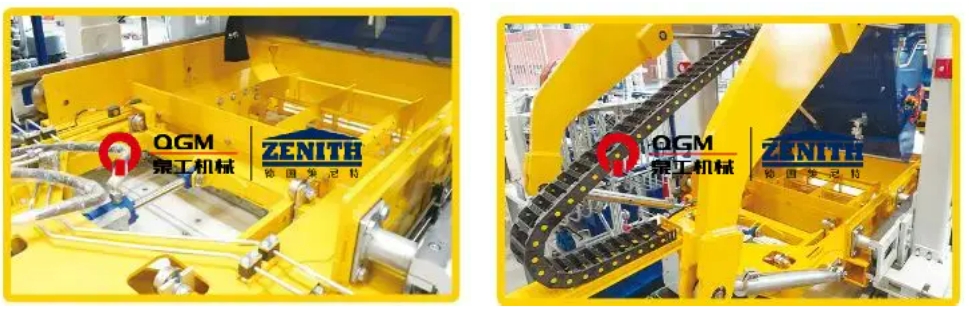

Electric Mold Insertion Device: Iyo mold yekumisikidza mudziyo unoshandiswa kuisa mold mumushini mukuru uye kudyisa uye kubvisa mold kubva muchina uchishandisa yemagetsi mold bracket, iyo inogona kuiswa kune mazhinji ma mold mumusika, uye akakosha mabhureki eforoma anogona kushandiswa kune yakakosha mold.

Mold Changing Device: Yakaiswa pachigadziko chemuchina mukuru, inoshandiswa kusimudza uye kurodha molds paunenge uchichinja molds, yakashongedzerwa nemagetsi cheni hoist uye yemagetsi kufamba mudziyo.

3. Fabrication systems

4. "Ultra-dynamic" servo vibration system:

"Ultra-dynamic" servo vibration tekinoroji imhando yepamusoro-inoshanda, yega-inogadzirisa vibration sisitimu yakanyatsogadzirirwa michina yezvidhinha; iyo servo mota inogona kuita nekukurumidza mhinduro munguva pfupi pfupi yekuita, kuona iyo yakanyanya vibration kuita, kuderedza huwandu hwesimende inoshandiswa uye kupfupisa kutenderera kwekugadzira, kugadzira yakakwira-compact kongiri zvigadzirwa; iyo vibration system inogona kuchinjika kuenderana nezvinodiwa zvakasiyana zvekongiri zvigadzirwa. Iyo servo mota inogona kuita nekukurumidza mhinduro munguva ipfupi yekuita kuti uone yakanyanya vibration kuita, iyo inogona kuderedza huwandu hwesimende, kupfupisa kutenderera kwekugadzira, uye kugadzira yakanyanya compact kongiri zvigadzirwa; iyo vibration system inogona kuchinjika kuchinjika kune zvinodiwa zvekugadzira zvezvakasiyana kongiri zvigadzirwa.

8 vibration units ine mechanic balance yakagadzika yega ne8 servo drives;

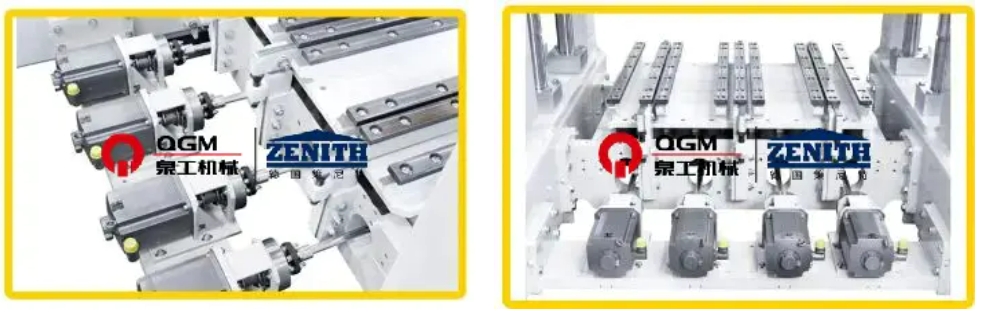

8 servo motors, imwe neimwe yakaiswa pane ekunze vibration yekuzviparadzanisa matanda emota anotsigira;

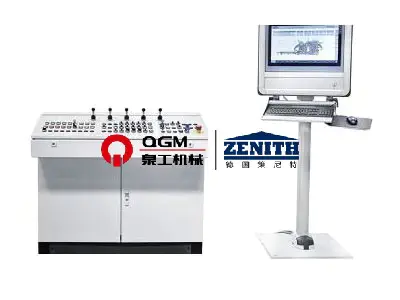

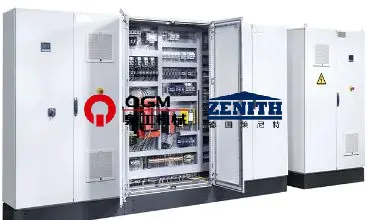

5. Yakarurama servo control system

Kuburikidza nemhinduro yechiratidzo, dzora chikamu uye nekumhanyisa kwekudedera, yakawiriraniswa kufamba kwekutonga, yakakwirira-kumhanya kumira, inogona kupedzwa munguva pfupi yenguva vibration uye kubviswa kwekudengenyeka, kubatsira kupfupisa kutenderera kutenderera, uye zvirinani braking maitiro. Kuburikidza nechinzvimbo uye nekumhanyisa kaviri yakavharwa-loop, dzora simba rekusimudzira rinongoshanda munzira yakatwasuka, wedzera simba rekukurudzira rinoshanda, uye panguva imwechete dzivirira kukuvadza kwesimba rekusimudzira pamushini, kurebesa hupenyu hwesevhisi yemidziyo, uye kukwanisa kugadzira marongero akasiyana ezvinodikanwa zvakasiyana zvechigadzirwa, uye kugadzira zvigadzirwa zvemhando yepamusoro.

Musoro wekudhinda, mold frame, aggregate mota uye machira emota inodzorwa neproportional directional valve ine spool mhinduro, ine kukurumidza kupindura nguva; iyo yakavharwa-loop control mode ye displacement sensor / encoder-PLC-proportional directional valve-cylinder inogamuchirwa, iyo inoita kuti kutonga kuve kwakarurama, uye chiito chesilinda nekukurumidza uye kugadzikana; iyo hydraulic station inotora shanduko yepiston pombi, iyo isingaburitse mafuta ekumanikidza uye inoburitsa pombi apo iyo hydraulic system inosvika pakudzvanywa kweseti kuderedza kushandiswa kwesimba; iyo hydraulic station inotora accumulator yekubatsira mafuta, iyo inoderedza kushandiswa kwesimba; uye iyo hydraulic station inotora accumulator yekubatsira mafuta, iyo inoderedza kushandiswa kwesimba uye kuderedza kushandiswa kwesimba. Iyo hydraulic station inotora accumulator yekubatsira mafuta ekuwedzera, ayo anogona kushandiswa kune akawanda zviito panguva imwe chete, uye kudzvanywa kweiyo hydraulic system yakagadzikana; iyo hydraulic system ine pressure sensors, iyo inogona kuratidzwa pane yekushanda pani kuti ione nyore; iyo hydraulic system ine tembiricha sensors, inotonhorera uye inodziya, iyo inogona kunyatso kudzora tembiricha yemafuta, kuitira kuti mafuta e hydraulic ave nekuita kwakanaka.

6. Hydraulic systems
